Installation

HACS Custom Repository

This integration is not yet in the default HACS store, so add it as a custom repository:

  1. In Home Assistant, open HACS.
  2. Click the menu in the top right, then Custom repositories.
  3. Enter https://github.com/rtl-433-hass/rtl_433 and choose the Integration category.
  4. Search for rtl_433, open it, and click Download.
  5. Restart Home Assistant.

Manual Install

  1. Copy custom_components/rtl_433 from this repository into Home Assistant's <config>/custom_components/ directory.
  2. Confirm the final path is <config>/custom_components/rtl_433/.
  3. Restart Home Assistant.

Next Step

After installation, add a hub from Home Assistant using the configuration guide. You will see the connection form below.

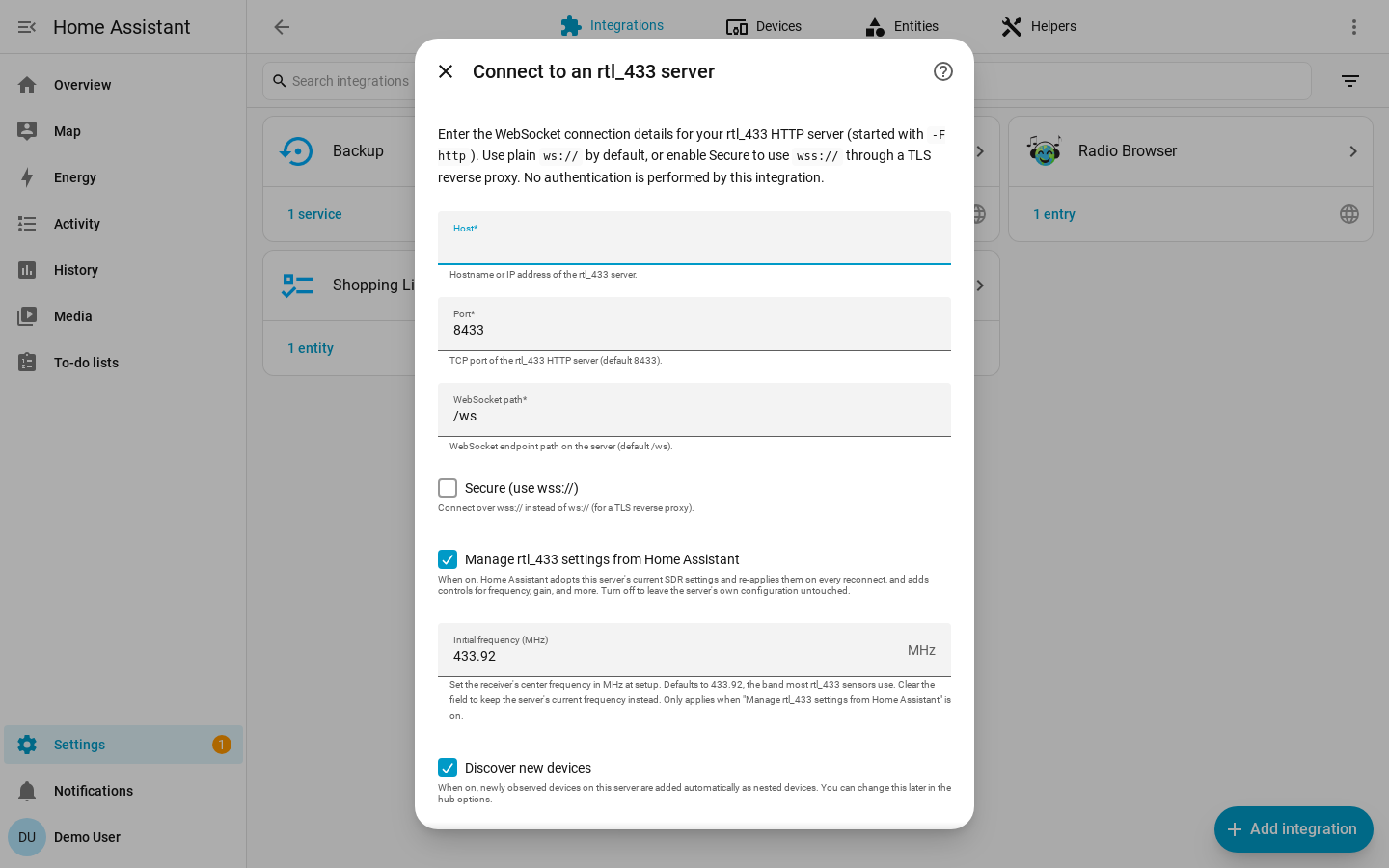

The rtl_433 config flow form: host, port, WebSocket path, secure toggle, managed-settings and discovery toggles, and initial frequency
