Device Mapping Library¶

The rtl_433 integration turns the JSON fields emitted by rtl_433 into Home Assistant entities using a data-driven device library: a set of YAML files that map each rtl_433 field name to a Home Assistant entity descriptor.

Use device mappings to add support for fields your rtl_433 hardware already reports, without editing the integration code or waiting for a new release. You can add mappings from the Home Assistant UI; contributors can also add mappings to the shipped library.

The shipped library is a faithful port of the curated mappings table and SKIP_KEYS from rtl_433's own examples/rtl_433_mqtt_hass.py. The mapping semantics (device class, unit, state class, value transform, unique-id suffix) are reused; the MQTT transport is discarded.

Adding device mappings¶

You can extend or correct the shipped library without editing the integration files directly from the Home Assistant UI:

Settings → Devices & Services → rtl_433 → Configure → Device mappings

The Device mappings step opens Home Assistant's built-in YAML editor pre-filled with that hub's current mappings. You edit mappings as YAML, using the same schema as the shipped library: top-level keys are rtl_433 field names, values are entry mappings. They may optionally include a skip_keys: list to add extra skip entries, and an optional models: block to add or override model-scoped descriptors.

Mappings are stored per hub in that hub's config entry — each hub has its own independent set. The editor:

Blocks invalid YAML syntax before you can submit.
Validates the mapping schema on save and rejects bad input with a per-field error naming the offending field and the reason.
Reloads the hub automatically.

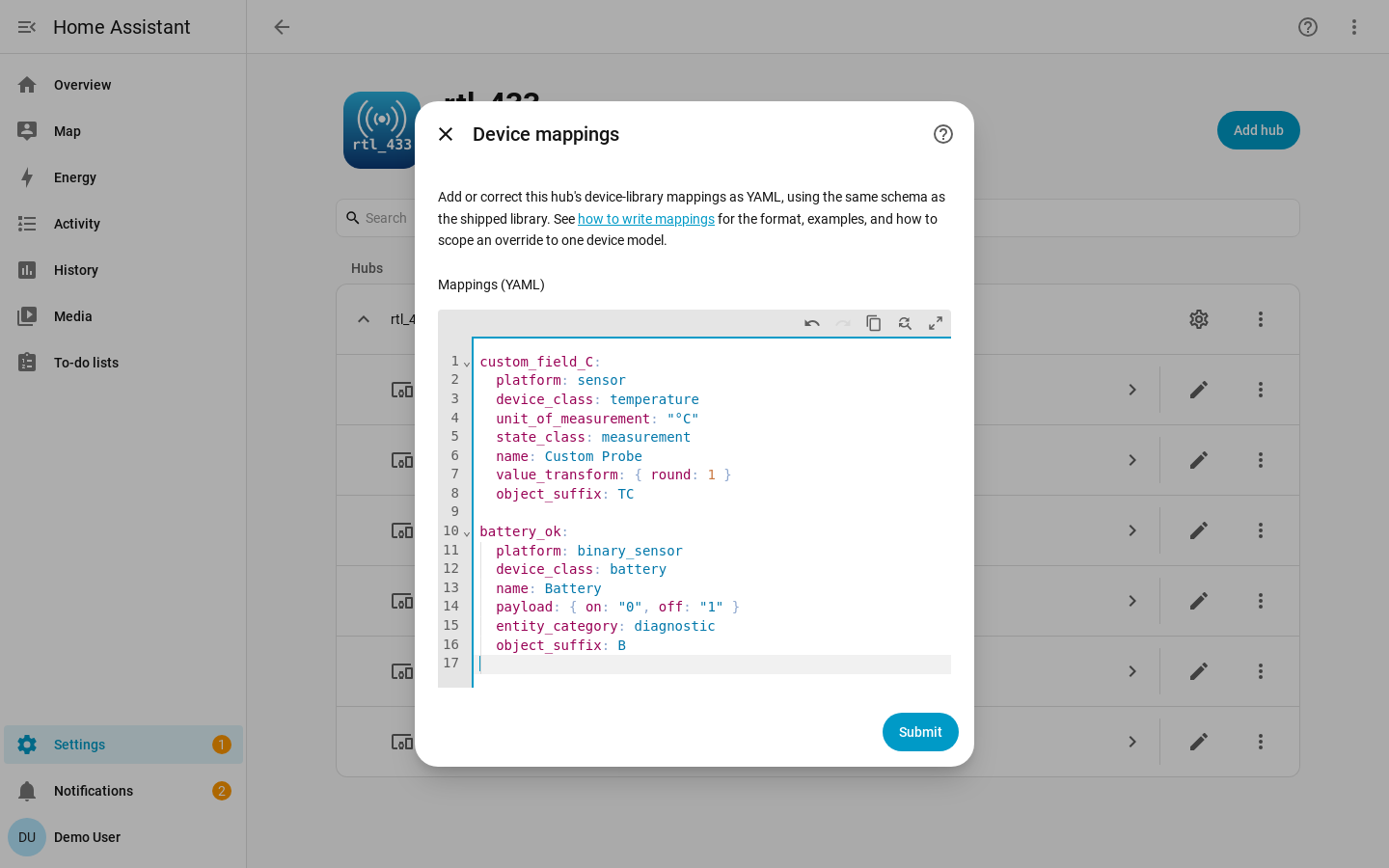

Device mappings step showing the YAML editor pre-filled with an example mapping

To find fields your device reports that do not yet have entities, download diagnostics for the hub from Settings → Devices & Services → the rtl_433 integration → ⋮ → Download diagnostics and inspect unmatched_field_keys. Each key is either a candidate for a mapping or, if it is genuinely noise/identity data, an entry for skip_keys:.

Comments and formatting are not preserved. The editor returns parsed YAML, so any comments or hand-formatting in what you paste are dropped once the mappings are stored. The mapping content is preserved exactly.

Mappings you add in the UI layer on top of the shipped library:

A field present in both the UI mapping and the shipped library: the UI mapping wins (full entry replacement, not a deep merge), so you can correct a unit, device class, or transform.
A field present only in the UI mapping: it is added as a new mapping.
skip_keys entries in the UI mapping are unioned with the shipped skip list.
A models: block in the UI mapping is merged per (model, field_key): a UI model-scoped entry replaces the shipped one for the same model and field, while other shipped model fields are preserved. Per the precedence rules, a model-scoped entry (from either source) always beats a global one — so a shipped models: entry outranks a UI global entry for a matching model.

Paste a mapping like the following into the Device mappings editor. This example adds an unmapped field and re-classifies battery_ok as a low-battery binary problem sensor:

custom_field_C:
  platform: sensor
  device_class: temperature
  unit_of_measurement: "°C"
  state_class: measurement
  name: Custom Probe
  value_transform: { round: 1 }
  object_suffix: TC

battery_ok:
  platform: binary_sensor
  device_class: battery     # HA "battery": on == problem (low)
  unit_of_measurement: null
  state_class: null
  name: Battery
  payload: { on: "0", off: "1" }   # battery_ok == 0 means low -> problem
  entity_category: diagnostic
  object_suffix: B

skip_keys: entries work in the editor exactly as in the shipped library, and so do model-scoped mappings — the way to correct a mapping for one specific device model rather than every device that emits the field. Nest the per-model descriptors under a models: block keyed by the exact rtl_433 model string; a model-scoped entry beats any global one for that model (see precedence). For example, to rename one model's temperature sensor and round it more finely than the global default, leaving every other model untouched:

models:
  Acurite-Tower: # exact rtl_433 model string
    temperature_C:
      platform: sensor
      device_class: temperature
      unit_of_measurement: "°C"
      state_class: measurement
      name: Outdoor temperature
      value_transform: { round: 2 }
      object_suffix: T

Mapping overrides are global or model-scoped only — they apply to every device of a model, not a single physical unit. To change settings for one specific unit (its availability timeout, meter calibration, or motion clear delay), use the options flow's Device settings step instead.

Mapping entry schema¶

Each library file is a YAML mapping whose top-level keys are rtl_433 field names exactly as they appear in the JSON event (e.g. temperature_C, wind_avg_km_h, battery_ok). Each value is an entry with the attributes below.

temperature_C:
  platform: sensor
  device_class: temperature
  unit_of_measurement: "°C"
  state_class: measurement
  name: null                  # HA names it "Temperature" from device_class
  value_transform: { round: 1 }
  object_suffix: T

Attributes¶

Attribute	Required	Type	Meaning
`platform`	yes	`sensor` \| `binary_sensor` \| `event`	Which Home Assistant platform creates the entity. See Event entities for `event`.
`device_class`	yes (nullable)	string \| `null`	Home Assistant device class (e.g. `temperature`, `humidity`, `safety`). Use `null` when the field has no appropriate device class. For `event` entries it is an `EventDeviceClass` (`button`, `doorbell`).
`unit_of_measurement`	yes (nullable)	string \| `null`	Unit shown by the entity. `null` for unitless or binary fields.
`state_class`	yes (nullable)	`measurement` \| `total` \| `total_increasing` \| `null`	Long-term-statistics class. `null` for binary fields and non-numeric sensors.
`name`	no	string \| `null`	Human-readable entity name (suffixed to the device name by HA). Omit it (or set `null`) to let Home Assistant derive a translated name from `device_class`. Only set an explicit name when it adds information the device class doesn't.
`object_suffix`	yes	string	Short, stable token appended to the device key to form the entity's unique id. Must be stable — changing it orphans existing entities.
`value_transform`	no	mapping	Declarative numeric transform applied before the value is stored. See Value transforms. Omit for binary fields.
`payload`	no	`{ on: <raw>, off: <raw> }`	For `binary_sensor` only: maps the raw rtl_433 value to the HA on/off state. See Binary payloads.
`event_map`	no	`{ <raw-string>: <event-type> }`	For `event` only: maps a stringified raw value to a named `event_type`; mapped types are declared up front in `event_types`. See Event entities.
`clear_delay`	no	int (seconds)	For `binary_sensor` only: seconds after a detection to synthesize an off, for detect-only hardware that sends no off. Reschedules on each detection; per-device override via the options flow. See Motion / occupancy.
`force_update`	no	bool	Mirrors upstream `force_update`; write state even when the value is unchanged. Defaults to false.
`entity_category`	no	`diagnostic` \| `config` \| `null`	Categorizes the entity in the HA UI. Diagnostic fields (battery, signal, tamper) use `diagnostic`.
`enabled_by_default`	no	bool	Set `false` to register the entity disabled (the user can enable it). Defaults to true.
`icon`	no	string	Optional `mdi:` icon override.
`event_driven`	no	bool	Marks a `binary_sensor` field as a state field that transmits only on a change, so the device has no periodic check-in. Defaults to false. Drives availability — see Availability classification. `platform: event` fields are always event-driven and do not need this flag.

null is written explicitly (YAML null) rather than omitted for the three "required (nullable)" attributes, so every entry is uniform and the loader never has to guess intent. Optional attributes may simply be omitted.

Value transforms¶

value_transform declares how to convert the raw JSON value into the stored state. It replaces the Jinja value_template strings used by the upstream MQTT example. Supported keys (applied in this order):

Key	Effect	Upstream template it replaces
`float`	Coerce to float.	`{{ value\\|float }}`
`int`	Coerce to int.	`{{ value\\|int }}`
`scale`	Multiply by the given number.	unit conversions, e.g. m/s → km/h (`* 3.6`)
`offset`	Add the given number (after `scale`).	additive offsets
`round`	Round to N decimal places (the value of the key).	`\\|round(N)`

Keys combine. The application order is: coerce (float/int) → scale → offset → round. Examples drawn from the shipped library:

rtl_433 field	Upstream `value_template`	`value_transform`
`temperature_C`	`{{ value\\|float\\|round(1) }}`	`{ round: 1 }`
`humidity`	`{{ value\\|float }}`	`{ float: true }`
`lux`	`{{ value\\|int }}`	`{ int: true }`
`wind_avg_m_s`	`{{ (float(value) * 3.6) \\| round(2) }}`	`{ scale: 3.6, round: 2 }`
`battery_ok`	`{{ ((float(value) * 99)\\|round(0)) + 1 }}`	`{ scale: 99, offset: 1, round: 0 }`

round implies float coercion, so { round: 1 } is equivalent to { float: true, round: 1 } and the shorter form is preferred.

Binary payloads¶

binary_sensor entries use payload instead of value_transform. It maps the raw rtl_433 value to Home Assistant's on/off state:

detect_wet:
  platform: binary_sensor
  device_class: moisture
  payload: { on: "1", off: "0" }   # 1 == wet == on

Note the direction matters for some fields. The upstream closed field is inverted — a value of 0 means the contact is open — so its payload is { on: "0", off: "1" }. Raw values are quoted strings to match how rtl_433 emits them.

battery_ok note. rtl_433's battery_ok is boolean-ish (1 = OK, 0 = low). The upstream example does not model it as a binary sensor; it converts it to a battery percentage sensor (0 → 1 %, 1 → 100 %) so it displays on the standard HA battery card. The shipped library preserves that: battery_ok is a sensor with device_class: battery, unit: "%", and value_transform: { scale: 99, offset: 1, round: 0 }. If you prefer a low-battery binary problem sensor, add a mapping in the Home Assistant UI.

Motion / occupancy¶

PIR / occupancy decoders (Interlogix, Risco Agility, Kerui, …) emit motion only on detection (raw value 1) and never send an off — the hardware is detect-only. So motion is a binary_sensor (device class occupancy) whose payload declares only an on token; the off state is synthesized by a timer rather than received:

motion:
  platform: binary_sensor
  device_class: occupancy
  name: Motion
  payload: { on: "1" }   # detect-only: no off token
  clear_delay: 90        # synthesize off 90 s after the last detection
  object_suffix: motion

The clear_delay attribute (seconds) drives the synthesized off: the sensor turns on on each detection and is auto-cleared to off after the delay elapses with no re-detection. Every fresh detection reschedules the timer, so the off window restarts on each retrigger. The shipped default is 90 s.

A stale on is never restored across a restart (there would be no live timer to clear it): the sensor comes back off/unknown until the next detection.

Per-device override. The delay can be tuned per device in the options flow — Settings → Devices & Services → rtl_433 → Configure → (device step) exposes a Motion clear delay (seconds) field, shown only for motion-bearing devices. Leave it blank to use the 90 s default. The override is resolved at runtime (per-device value, else the descriptor default).

Availability classification¶

A device is marked unavailable when it falls silent past its availability timeout. RF devices signal presence only by transmitting, so the timeout is resolved per device: a per-device override, then an explicit hub default, then a device-class default derived from the device's known fields — both its adopted (persisted) fields and its latest payload, so an event-driven device that has been silent since a restart is still classified correctly before it next transmits (rather than briefly expiring its battery at the periodic default).

The class default has two outcomes:

Event-driven → never-expire (the device, and all its entities including battery, stay available once seen). These devices transmit only on a state change — a door opening, motion, a button press — so any finite silence timeout would eventually misfire and wrongly hide a healthy device. A field is event-driven when it uses platform: event or sets event_driven: true (e.g. motion, contact_open, reed_open, closed, alarm). The set is derived from the active library (shipped descriptors plus user mappings).
Periodic → a finite default (10 min). Everything else — temperature, humidity, power, etc. — which reports on a regular cadence.

Diagnostic fields such as battery_ok do not decide the class on their own. If a device also has an event-driven field, the whole device uses the event-driven default, so its battery and other entities stay available between events. An explicit per-device or hub timeout always overrides the class default.

Because an event-driven device's availability no longer signals freshness, its per-device Last seen timestamp sensor is enabled by default (it ships disabled for periodic devices). It stays available once seen, so "no signal for N minutes" automations keep working.

Event entities¶

platform: event is for momentary, fire-and-forget RF fields — a remote button, a doorbell press — that have no steady "on" / "off" state to track. Each genuine transmission fires one Home Assistant event, and the entity stays available between presses (no faked "off"). Event entries live in their own library file, device_library/events.yaml:

button:
  platform: event
  device_class: button     # an EventDeviceClass
  name: Button
  object_suffix: button

How event entries differ from sensor / binary_sensor:

By default the fired event_type is the stringified field value (str(value)). There is no payload and no value_transform — the raw value is stringified directly.
By default event_types are auto-populated, not declared. Each newly observed value is recorded as a valid type the first time it is seen and persisted per device, so after a restart the entity rebuilds knowing the types it has seen before. You never list them in the YAML.
A field whose value varies (a remote that reports which button was pressed) auto-populates several types; a field that only ever emits one distinct value fires that one type on every transmission.
The fired event carries no extra attributes — the type is the only payload.
device_class is an EventDeviceClass (button, doorbell).

`event_map`: naming raw values¶

The optional event_map attribute overrides the default stringified behavior: it maps a stringified raw value → named event_type. When present:

A transmission whose raw value is in the map fires the mapped type; values not in the map still pass through as str(value).
The mapped types are declared up front in event_types (in map order), rather than only appearing once observed — so a device_trigger lists them even before the first press.

The doorbell is the shipped example. secret_knock is emitted on every press: raw 0 is a regular single press and raw 1 is a "secret knock" (the button pressed three times rapidly). It maps both onto Home Assistant's doorbell standard:

secret_knock:
  platform: event
  device_class: doorbell
  name: Doorbell
  object_suffix: secret_knock
  event_map:
    "0": ring          # DoorbellEventType.RING — the HA standard type
    "1": secret_knock  # custom type for the 3x-rapid "secret knock"

The shipped events.yaml has two examples:

Field	`device_class`	Notes
`button`	`button`	Remote / key-fob button code; the value is the pressed code, so distinct presses auto-populate several types.
`secret_knock`	`doorbell`	Honeywell ActivLink doorbell press; emitted on every press (`0` regular → `ring`, `1` secret knock → `secret_knock`) via `event_map`.

Model-scoped mappings (`models:`)¶

The top-level keys above are the global defaults: a temperature_C entry applies to every device that emits temperature_C. Some fields, though, need a different descriptor depending on the device model — most notably the utility-meter consumption counters (consumption, consumption_data), whose unit and scale are not carried in the RF signal and differ between meter models. For those, a file may carry an optional top-level models: block that overrides the global descriptor for one specific rtl_433 model string.

models: is keyed by the exact rtl_433 model value, and each model maps to a table of field_key → descriptor using the same per-field attribute schema as the global entries (platform, device_class, unit_of_measurement, state_class, name, object_suffix, value_transform, …):

# top-level global defaults (unchanged) live here ...
temperature_C:
  platform: sensor
  device_class: temperature
  unit_of_measurement: "°C"
  state_class: measurement
  name: Temperature
  value_transform: { round: 1 }
  object_suffix: T

# ... and an optional model-scoped block sits alongside them:
models:
  Some-Model-Name:            # an exact rtl_433 `model` string
    consumption_data:
      platform: sensor
      device_class: energy
      unit_of_measurement: kWh
      state_class: total_increasing
      name: Consumption
      value_transform: { scale: 1 }
      object_suffix: consumption

The models: block is additive and optional: every existing library file parses exactly as before, and the flat top-level keys remain the global default. It may appear in any library file (most naturally power_electrical.yaml) and in UI mappings. models is a reserved top-level key — the loader intercepts it, so you cannot have a field literally named models.

Lookup resolution order¶

When the integration builds an entity for a field on a device, it resolves the descriptor most-specific first:

The model-scoped entry for (model, field_key), if the device's model has a models: block with that field.
Otherwise the global flat entry for field_key.
Otherwise the field is unmapped → no entity.

So a models: entry only affects the model it names; every other model keeps the global descriptor for that same field.

Precedence (specificity-first)¶

Combined with UI mappings and the per-device meter calibration (the options-flow Device settings step), the full precedence for a single field on a single device is, highest to lowest:

Per-device calibration (commodity + base unit + scale, set in the options flow) — applies only to the consumption field(s) of the one calibrated device.
Model-scoped entry — UI models: entry, else shipped models: entry.
Global flat entry — UI flat key, else shipped flat key.
Unmapped → no entity.

The rule is specificity-first: a model-scoped entry always beats a global one regardless of source. In particular a shipped models: entry outranks a UI global entry for a matching model. Within each tier the UI mapping beats the shipped library. (This falls out naturally from the merge: the UI mapping replaces the shipped entry within a tier, and the lookup checks the model tier before the global tier.)

No speculative real-meter mappings ship. Because a meter's consumption unit/scale is not knowable from the signal, the shipped library does not carry a guessed models: consumption mapping for any real model — a wrong scale would silently corrupt real Energy data. The example below is purely illustrative; for a real meter use the per-device calibration step in the options flow (see Utility-meter calibration) until a model's unit/scale is authoritatively known.

The skip-keys file¶

_skip_keys.yaml lists fields that must never produce an entity — device identity (model, id, channel, subtype, type), message bookkeeping (mic, mod, sequence_num, message_type, exception, raw_msg), and the secondary radio-tuning fields (freq1, freq2, protocol). The primary per-event freq is not skipped — it is mapped in misc.yaml to a diagnostic Frequency sensor (disabled by default) alongside rssi, snr, and noise, so the tuned frequency can be recorded when rtl_433 reports level data:

skip_keys:
  - type
  - model
  - id
  # ...

The loader checks a field against this list before attempting a mapping lookup. Identity keys (model + id/channel/subtype) are consumed by the event normalizer to derive the device key, which is why they are skipped here rather than mapped to entities.

Contributing device mappings¶

The easiest way to add support for your own installation is to use Adding device mappings. If you want the mapping to ship with the integration for everyone, add it to the repository's device library and open a pull request.

Where the files live¶

custom_components/rtl_433/device_library/
├── _skip_keys.yaml         # fields that never become entities
├── air_quality.yaml        # pm2.5 / pm10 / co2
├── binary_states.yaml      # contacts, tamper, alarm, door state
├── events.yaml             # momentary RF: button, doorbell
├── humidity_moisture.yaml  # humidity, moisture, leak, depth, WH51 soil AD/boost
├── light_uv.yaml           # illuminance, UV
├── misc.yaml               # battery %, timestamp, signal, lightning
├── power_electrical.yaml   # power, energy, current, voltage, consumption
├── pressure.yaml           # barometric pressure
├── rain.yaml               # rain total / rate
├── temperature.yaml        # temperature variants
└── wind.yaml               # wind speed / gust / direction

The loader reads every *.yaml file in this directory at startup, merges all entries into one lookup table keyed by field name, and reads _skip_keys.yaml separately as the exclusion list. Grouping is purely organizational: put a new field in whichever file fits its domain, or in misc.yaml if nothing fits. UI mappings from Adding device mappings are layered on top of the merged shipped library.

Files whose name starts with _ (currently only _skip_keys.yaml) are treated specially by the loader and are not parsed as field-mapping tables.

Add-a-mapping workflow¶

Find the field name. Watch your rtl_433 stream or download diagnostics for the hub from Settings → Devices & Services → the rtl_433 integration → ⋮ → Download diagnostics. The diagnostics export lists unmapped fields your hardware has sent in unmatched_field_keys. Each key is either a candidate for a mapping or, if it is genuinely noise/identity data, an entry for _skip_keys.yaml. rtl_433 field names are case-sensitive and unit-suffixed (temperature_C, not temperature).
Pick the file that matches the field's domain, or misc.yaml.
Add an entry keyed by the exact field name, filling in the required attributes. Copy a similar existing entry as a template.
For a numeric reading: choose platform: sensor, the closest HA device class, the unit rtl_433 reports, a state_class (measurement for instantaneous readings, total_increasing for monotonic counters like rain or energy), and a value_transform.
For a boolean: choose platform: binary_sensor, a device class, and a payload mapping. Leave unit_of_measurement / state_class null.
Choose a short, stable object_suffix that is unique among the fields a single device emits.

Validate the YAML:

python3 -c "import yaml,glob; [yaml.safe_load(open(f)) for f in glob.glob('custom_components/rtl_433/device_library/*.yaml')]; print('ok')"

Add a fixture/test if you are contributing upstream (see the project test suite) and open a PR with a feat: conventional commit.

Notes on fields that cannot be expressed declaratively¶

The upstream mappings table includes two device_automation entries — channel and button — that publish MQTT device triggers (e.g. button_short_release) rather than entities. These have no sensor / binary_sensor equivalent in this schema:

channel is already a device-identity key and lives in _skip_keys.yaml.
button is modelled as an event entity instead of an MQTT device trigger — see device_library/events.yaml.

Everything else from the upstream table is ported faithfully.
